Data preparation
Now the positive mode and negative mode have been annotated respectively. We need to merge positive and negative mode data.
library(tidymass)
#> Registered S3 method overwritten by 'Hmisc':
#> method from
#> vcov.default fit.models
#> ── Attaching packages ──────────────────────────────────────── tidymass 1.0.8 ──
#> ✔ massdataset 1.0.25 ✔ metid 1.2.28
#> ✔ massprocesser 1.0.10 ✔ masstools 1.0.10
#> ✔ masscleaner 1.0.11 ✔ dplyr 1.1.2
#> ✔ massqc 1.0.6 ✔ ggplot2 3.4.2
#> ✔ massstat 1.0.5 ✔ magrittr 2.0.3
#> ✔ metpath 1.0.8
library(tidyverse)
#> ── Attaching core tidyverse packages ──────────────────────── tidyverse 2.0.0 ──
#> ✔ forcats 1.0.0 ✔ readr 2.1.4
#> ✔ lubridate 1.9.2 ✔ stringr 1.5.0
#> ✔ purrr 1.0.1 ✔ tibble 3.2.1
#> ── Conflicts ────────────────────────────────────────── tidyverse_conflicts() ──
#> ✖ xcms::collect() masks dplyr::collect()
#> ✖ MSnbase::combine() masks Biobase::combine(), BiocGenerics::combine(), dplyr::combine()
#> ✖ tidyr::expand() masks S4Vectors::expand()
#> ✖ tidyr::extract() masks magrittr::extract()
#> ✖ metid::filter() masks metpath::filter(), dplyr::filter(), massdataset::filter(), stats::filter()
#> ✖ S4Vectors::first() masks dplyr::first()
#> ✖ xcms::groups() masks dplyr::groups()
#> ✖ dplyr::lag() masks stats::lag()
#> ✖ purrr::map() masks mixOmics::map()
#> ✖ BiocGenerics::Position() masks ggplot2::Position(), base::Position()
#> ✖ purrr::reduce() masks MSnbase::reduce()
#> ✖ S4Vectors::rename() masks dplyr::rename(), massdataset::rename()
#> ✖ lubridate::second() masks S4Vectors::second()
#> ✖ lubridate::second<-() masks S4Vectors::second<-()
#> ✖ MASS::select() masks dplyr::select(), massdataset::select()
#> ✖ purrr::set_names() masks magrittr::set_names()
#> ℹ Use the conflicted package (<http://conflicted.r-lib.org/>) to force all conflicts to become errors
Load data
load("metabolite_annotation/object_pos2")
load("metabolite_annotation/object_neg2")
Remove the features without annotations
Positive mode
object_pos2 <-
object_pos2 %>%
activate_mass_dataset(what = "annotation_table") %>%
filter(!is.na(Level)) %>%
filter(Level == 1 | Level == 2)
object_pos2
#> --------------------
#> massdataset version: 0.99.1
#> --------------------
#> 1.expression_data:[ 206 x 259 data.frame]
#> 2.sample_info:[ 259 x 6 data.frame]
#> 259 samples:sample_06 sample_103 sample_11 ... sample_QC_38 sample_QC_39
#> 3.variable_info:[ 206 x 6 data.frame]
#> 206 variables:M86T95_POS M95T100_1_POS M100T160_POS ... M568T622_POS M609T427_POS
#> 4.sample_info_note:[ 6 x 2 data.frame]
#> 5.variable_info_note:[ 6 x 2 data.frame]
#> 6.ms2_data:[ 1042 variables x 951 MS2 spectra]
#> --------------------
#> Processing information
#> 11 processings in total
#> Latest 3 processings show
#> update_mass_dataset ----------
#> Package Function.used Time
#> 1 massdataset update_mass_dataset() 2022-01-19 21:53:01
#> mutate_ms2 ----------
#> Package Function.used Time
#> 1 massdataset mutate_ms2() 2022-01-19 21:53:36
#> annotate_metabolites_mass_dataset ----------
#> Package Function.used Time
#> 1 metid annotate_metabolites_mass_dataset() 2022-02-22 21:16:23.17454
#> 2 metid annotate_metabolites_mass_dataset() 2022-02-22 21:30:10.706486
#> 3 metid annotate_metabolites_mass_dataset() 2022-02-22 21:47:59.474422
Negative mode
object_neg2 <-
object_neg2 %>%
activate_mass_dataset(what = "annotation_table") %>%
filter(!is.na(Level)) %>%
filter(Level == 1 | Level == 2)
object_neg2
#> --------------------
#> massdataset version: 0.99.1
#> --------------------
#> 1.expression_data:[ 165 x 259 data.frame]
#> 2.sample_info:[ 259 x 6 data.frame]
#> 259 samples:sample_06 sample_103 sample_11 ... sample_QC_38 sample_QC_39
#> 3.variable_info:[ 165 x 6 data.frame]
#> 165 variables:M73T74_NEG M75T52_NEG M85T99_NEG ... M480T641_NEG M514T611_NEG
#> 4.sample_info_note:[ 6 x 2 data.frame]
#> 5.variable_info_note:[ 6 x 2 data.frame]
#> 6.ms2_data:[ 1092 variables x 988 MS2 spectra]
#> --------------------
#> Processing information
#> 11 processings in total
#> Latest 3 processings show
#> update_mass_dataset ----------
#> Package Function.used Time
#> 1 massdataset update_mass_dataset() 2022-01-19 21:53:37
#> mutate_ms2 ----------
#> Package Function.used Time
#> 1 massdataset mutate_ms2() 2022-01-19 21:54:06
#> annotate_metabolites_mass_dataset ----------
#> Package Function.used Time
#> 1 metid annotate_metabolites_mass_dataset() 2022-02-22 21:50:29.759271
#> 2 metid annotate_metabolites_mass_dataset() 2022-02-22 22:08:10.771619
#> 3 metid annotate_metabolites_mass_dataset() 2022-02-22 22:26:33.968578
Merge data
We need to merge positive and negative mode data as one mass_dataset
class.
head(colnames(object_pos2))
#> [1] "sample_06" "sample_103" "sample_11" "sample_112" "sample_117"
#> [6] "sample_12"
head(colnames(object_neg2))
#> [1] "sample_06" "sample_103" "sample_11" "sample_112" "sample_117"
#> [6] "sample_12"
object <-
merge_mass_dataset(x = object_pos2,
y = object_neg2,
sample_direction = "inner",
variable_direction = "full",
sample_by = "sample_id",
variable_by = c("variable_id", "mz", "rt"))
object
#> --------------------
#> massdataset version: 1.0.25
#> --------------------
#> 1.expression_data:[ 371 x 259 data.frame]
#> 2.sample_info:[ 259 x 11 data.frame]
#> 259 samples:sample_06 sample_103 sample_11 ... sample_QC_38 sample_QC_39
#> 3.variable_info:[ 371 x 9 data.frame]
#> 371 variables:M86T95_POS M95T100_1_POS M100T160_POS ... M480T641_NEG M514T611_NEG
#> 4.sample_info_note:[ 11 x 2 data.frame]
#> 5.variable_info_note:[ 9 x 2 data.frame]
#> 6.ms2_data:[ 2084 variables x 1902 MS2 spectra]
#> --------------------
#> Processing information
#> 23 processings in total
#> Latest 3 processings show
#> mutate_ms2 ----------
#> Package Function.used Time
#> 1 massdataset mutate_ms2() 2022-01-19 21:54:06
#> annotate_metabolites_mass_dataset ----------
#> Package Function.used Time
#> 1 metid annotate_metabolites_mass_dataset() 2022-02-22 21:50:29.759271
#> 2 metid annotate_metabolites_mass_dataset() 2022-02-22 22:08:10.771619
#> 3 metid annotate_metabolites_mass_dataset() 2022-02-22 22:26:33.968578
#> merge_mass_dataset ----------
#> Package Function.used Time
#> 1 massdataset merge_mass_dataset 2023-08-31 00:00:35
Trace processing information of object
Then we can use the report_parameters()
function to trace processing information of object.
All the analysis results will be placed in a folder named as statistical_analysis
.
dir.create(path = "statistical_analysis", showWarnings = FALSE)
report_parameters(object = object, path = "statistical_analysis/")
A html format file named as parameter_report.html
will be generated.
Remove redundant metabolites
Remove the redundant annotated metabolites bases on Level
and score.
object <-
object %>%
activate_mass_dataset(what = "annotation_table") %>%
group_by(Compound.name) %>%
filter(Level == min(Level)) %>%
filter(SS == max(SS)) %>%
slice_head(n = 1)
object <-
object %>%
activate_mass_dataset(what = "annotation_table") %>%
group_by(variable_id) %>%
filter(Level == min(Level)) %>%
filter(SS == max(SS)) %>%
slice_head(n = 1)
Differential expression metabolites
Calculate the fold changes.
control_sample_id =
object %>%
activate_mass_dataset(what = "sample_info") %>%
filter(group == "Control") %>%
pull(sample_id)
case_sample_id =
object %>%
activate_mass_dataset(what = "sample_info") %>%
filter(group == "Case") %>%
pull(sample_id)
object <-
mutate_fc(object = object,
control_sample_id = control_sample_id,
case_sample_id = case_sample_id,
mean_median = "mean")
#> 110 control samples.
#> 110 case samples.
Calculate p values.
object <-
mutate_p_value(
object = object,
control_sample_id = control_sample_id,
case_sample_id = case_sample_id,
method = "t.test",
p_adjust_methods = "BH"
)
#> 110 control samples.
#> 110 case samples.

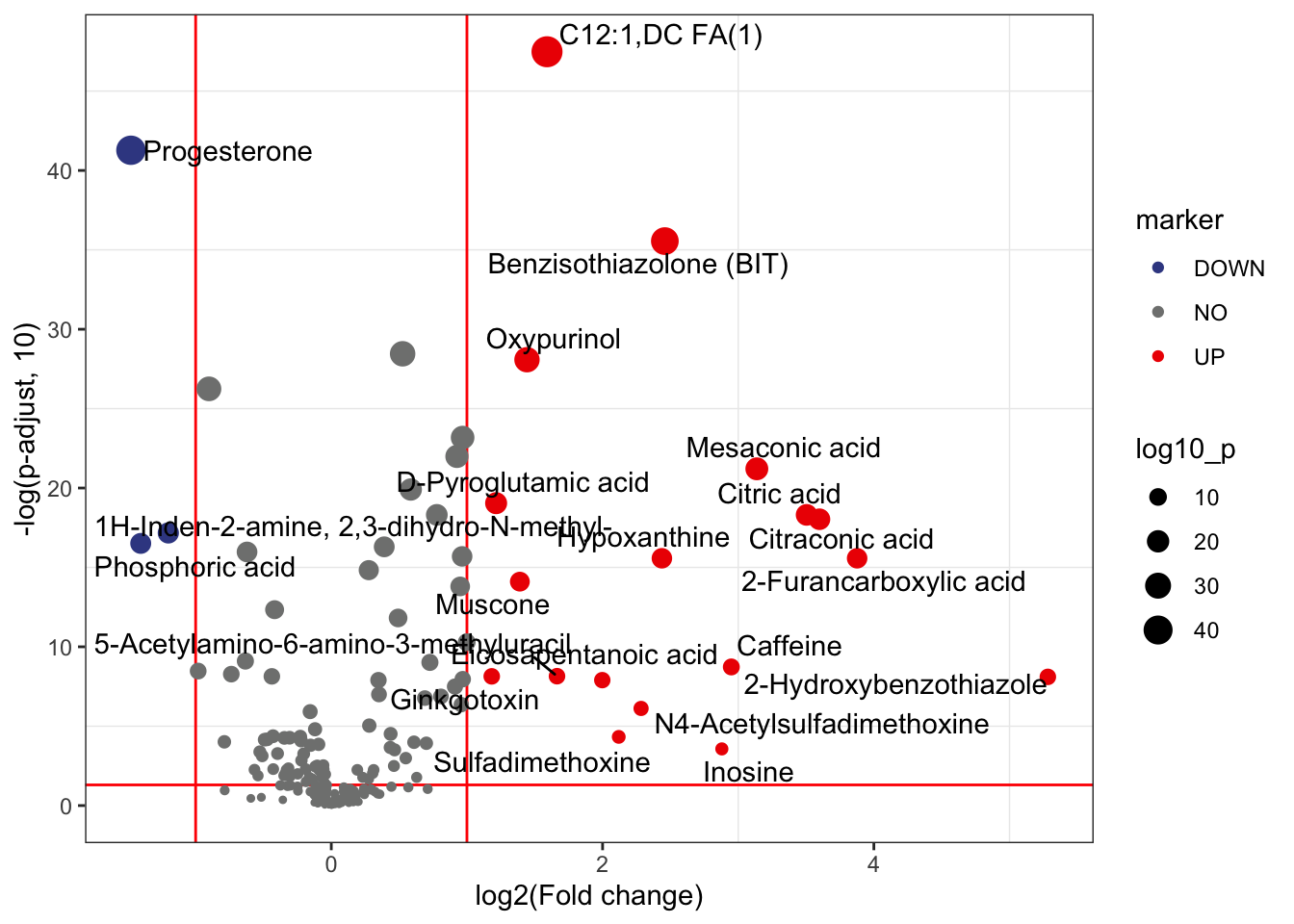

Volcano plot.
volcano_plot(object = object,
add_text = TRUE,
text_from = "Compound.name",
point_size_scale = "p_value") +
scale_size_continuous(range = c(0.5, 5))
Output result
Output the differential expression metabolites.
differential_metabolites <-
extract_variable_info(object = object) %>%
filter(fc > 2 | fc < 0.5) %>%
filter(p_value_adjust < 0.05)
readr::write_csv(differential_metabolites,
file = "statistical_analysis/differential_metabolites.csv")
Save result for subsequent analysis.
object_final <- object
save(object_final, file = "statistical_analysis/object_final")
