mass_dataset and ggplot2
Xiaotao Shen
Created on 2021-12-04 and updated on 2026-03-02
Source:vignettes/ggplot_mass_dataset.Rmd
ggplot_mass_dataset.RmdIntroduction
mass_dataset can be easily used with
ggplot2 package with ggplot_mass_dataset
function. Now, ggplot() function also supports
mass_dataset class.
Data preparation
library(massdataset)
library(tidyverse)
data("expression_data")
data("sample_info")
data("sample_info_note")
data("variable_info")
data("variable_info_note")
object =
create_mass_dataset(
expression_data = expression_data,
sample_info = sample_info,
variable_info = variable_info,
sample_info_note = sample_info_note,
variable_info_note = variable_info_note
)Sample wise
We need to replace ggplot with
ggplot_mass_dataset, and then other functions are same with
ggplot2 for graphics.
plot <-
object %>%
`+`(1) %>%
log(10) %>%
scale() %>%
ggplot_mass_dataset(direction = "sample",
sample_index = 2)
class(plot)
#> [1] "ggplot2::ggplot" "ggplot" "ggplot2::gg" "S7_object"
#> [5] "gg"The default y is value, here is the
intensity of all the features in the second sample.

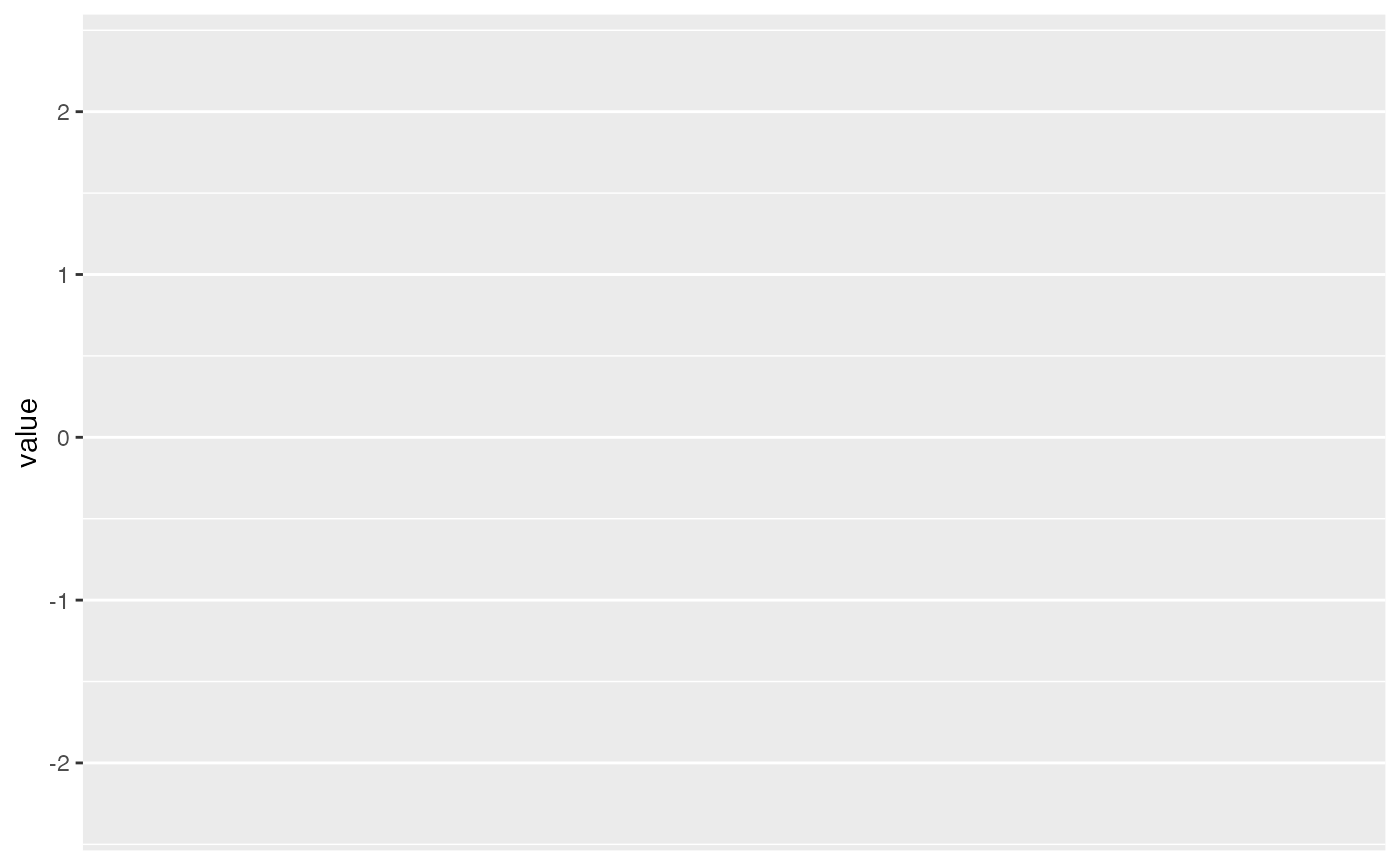

{r,eval=TRUE,warning=FALSE, R.options="", message=FALSE, cache=FALSE, fig.alt="Distribution of scaled log-transformed feature intensities in the second sample."} plot
head(plot$data)
#> variable_id mz rt value
#> 1 M136T55_2_POS 136.06140 54.97902 NA
#> 2 M79T35_POS 79.05394 35.36550 NA
#> 3 M307T548_POS 307.14035 547.56641 NA
#> 4 M183T224_POS 183.06209 224.32777 NA
#> 5 M349T47_POS 349.01584 47.00262 NA
#> 6 M182T828_POS 181.99775 828.35712 -1.778405
plot <-
object %>%
`+`(1) %>%
log(10) %>%
scale() %>%
ggplot_mass_dataset(direction = "sample",
sample_index = 2) +
geom_boxplot(aes(x = 1)) +
geom_jitter(aes(x = 1, color = mz)) +

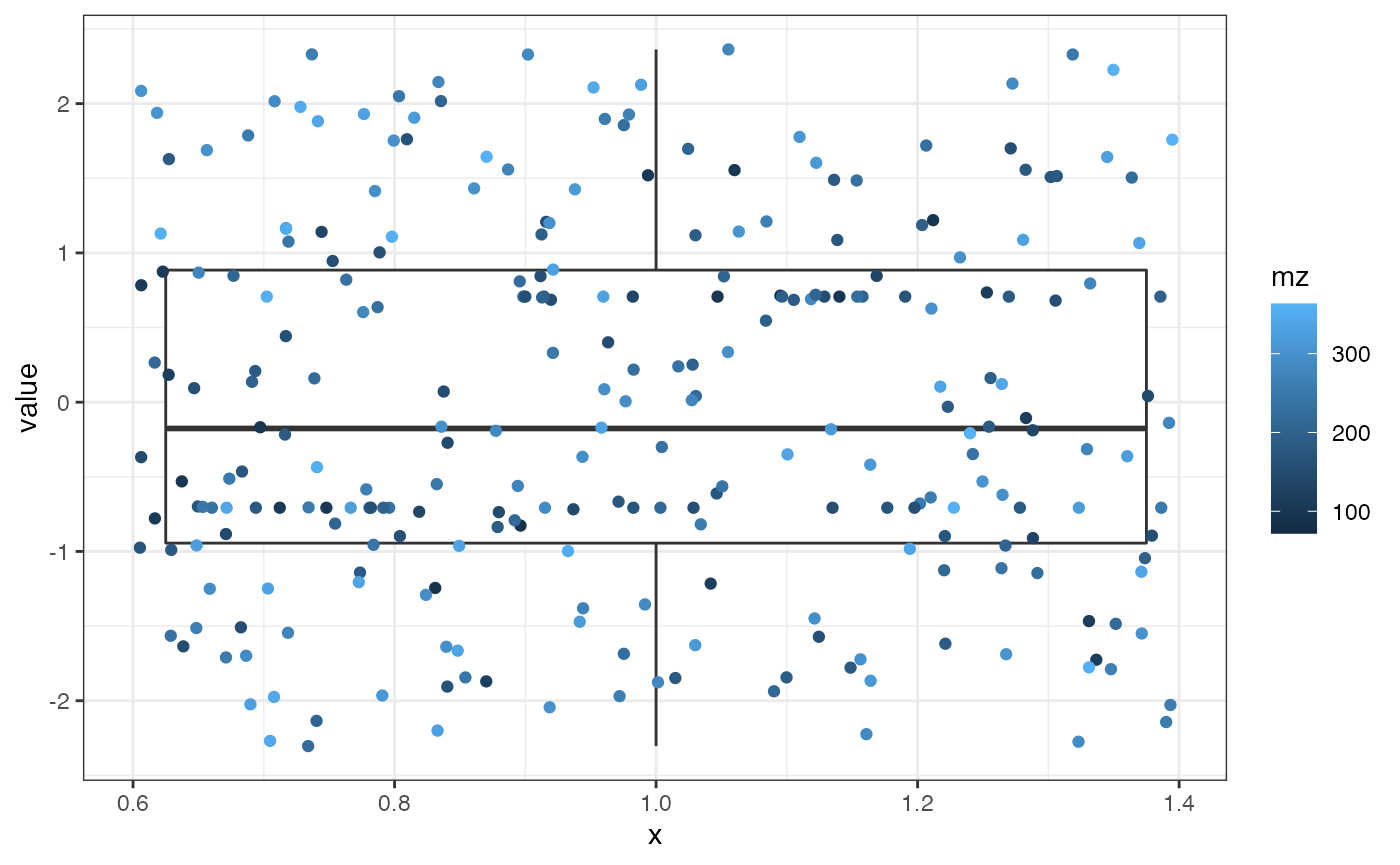

theme_bw(){r,eval=TRUE,warning=FALSE, R.options="", message=FALSE, cache=FALSE, fig.alt="Boxplot and jitter plot of scaled log-transformed intensities in the second sample, colored by m/z."} plot
Variable wise

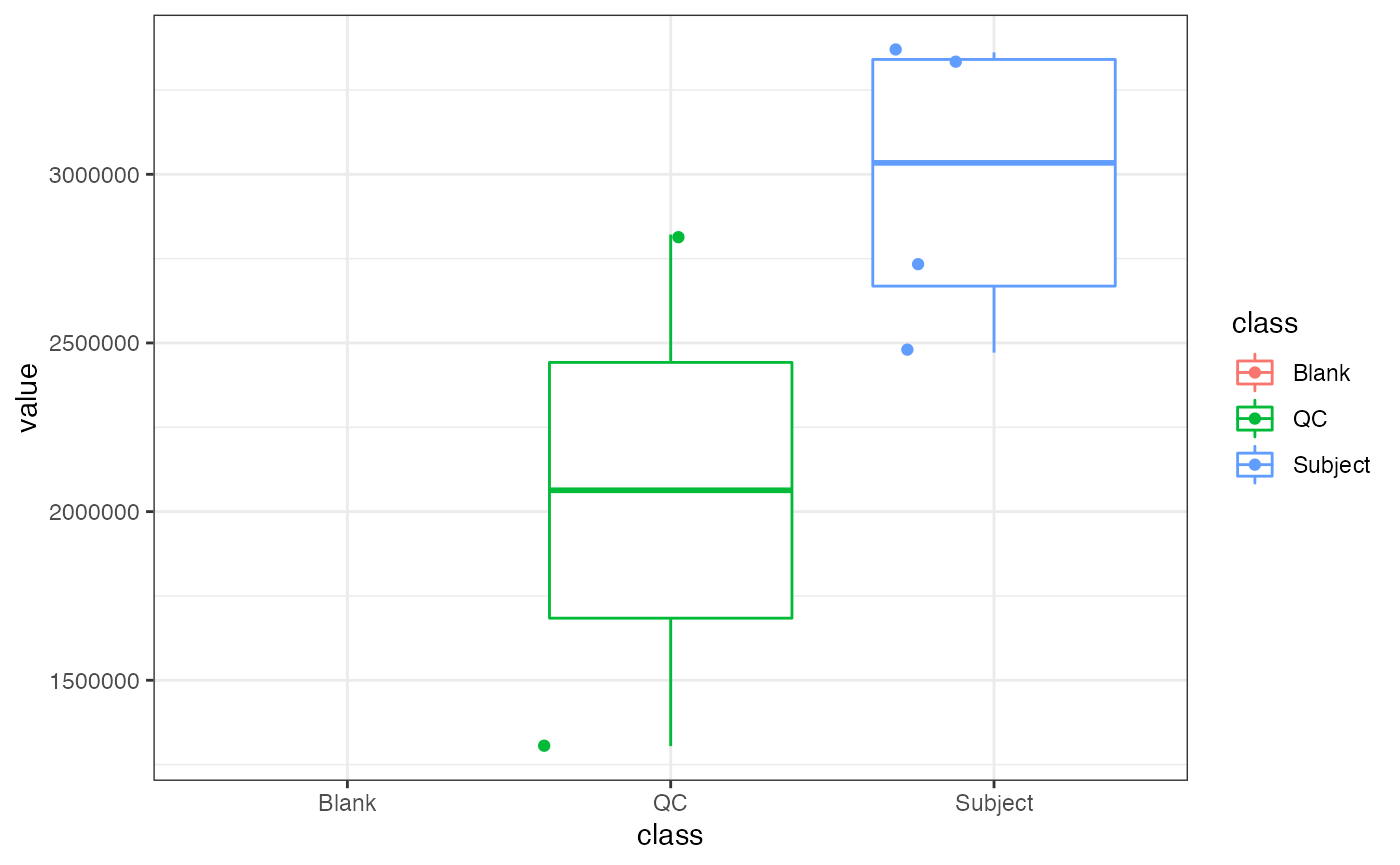

{r,eval=TRUE,warning=FALSE, R.options="", message=FALSE, cache=FALSE, fig.alt="Boxplot and jitter plot of one feature across sample classes."} ggplot_mass_dataset(object, direction = "variable", variable_index = 2) + geom_boxplot(aes(x = class, color = class)) + geom_jitter(aes(x = class, color = class)) + theme_bw()

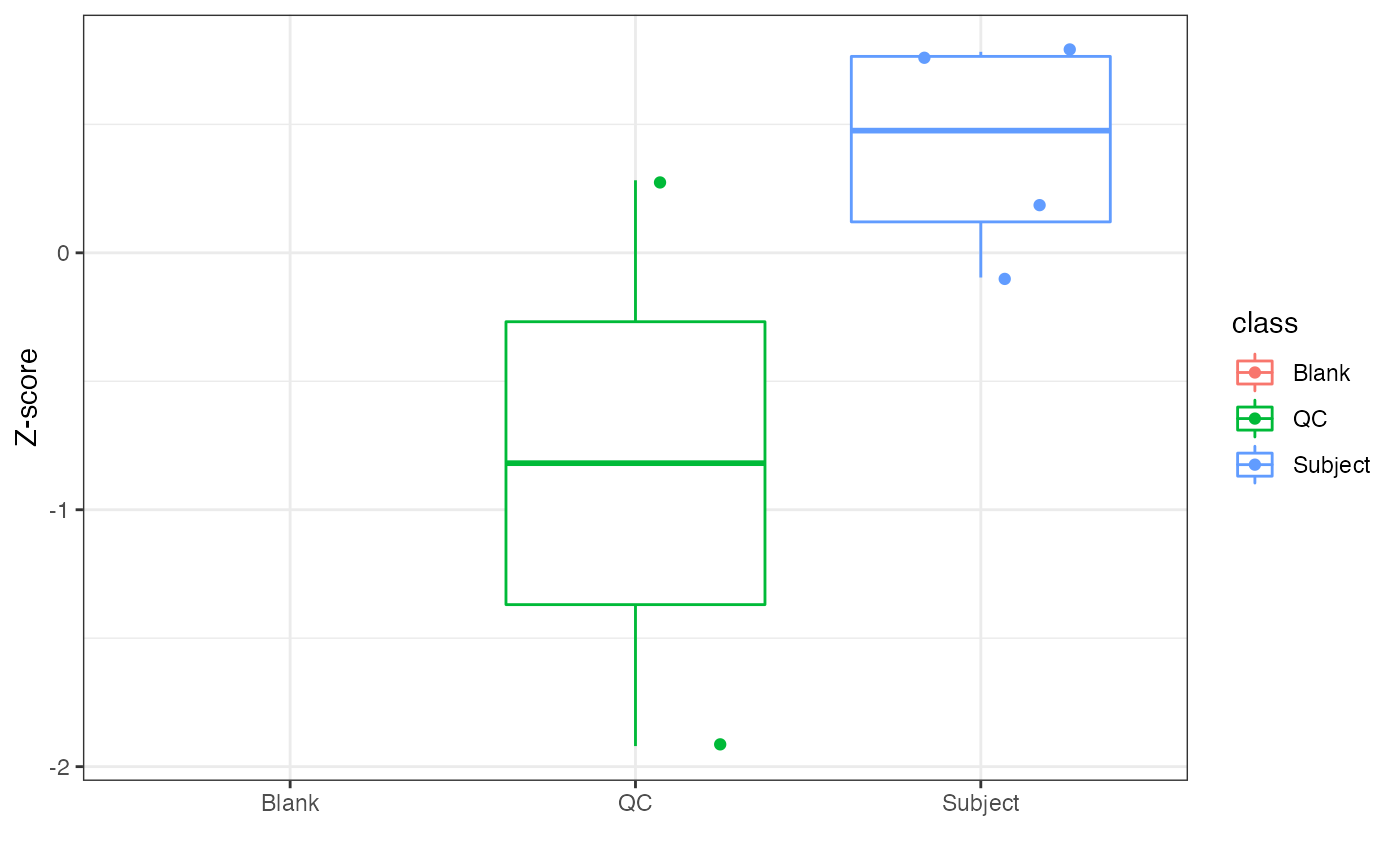

{r,eval=TRUE,warning=FALSE, R.options="", message=FALSE, cache=FALSE, fig.alt="Boxplot and jitter plot of one feature across sample classes after log transformation and scaling."} object %>% `+`(1) %>% log(10) %>% scale() %>% ggplot_mass_dataset(direction = "variable", variable_index = 2) + geom_boxplot(aes(x = class, color = class)) + geom_jitter(aes(x = class, color = class)) + theme_bw() + labs(x = "", y = "Z-score")
ggplot() function
You need use activate_mass_dataset() to tell which slot
you want to use for ggplot().

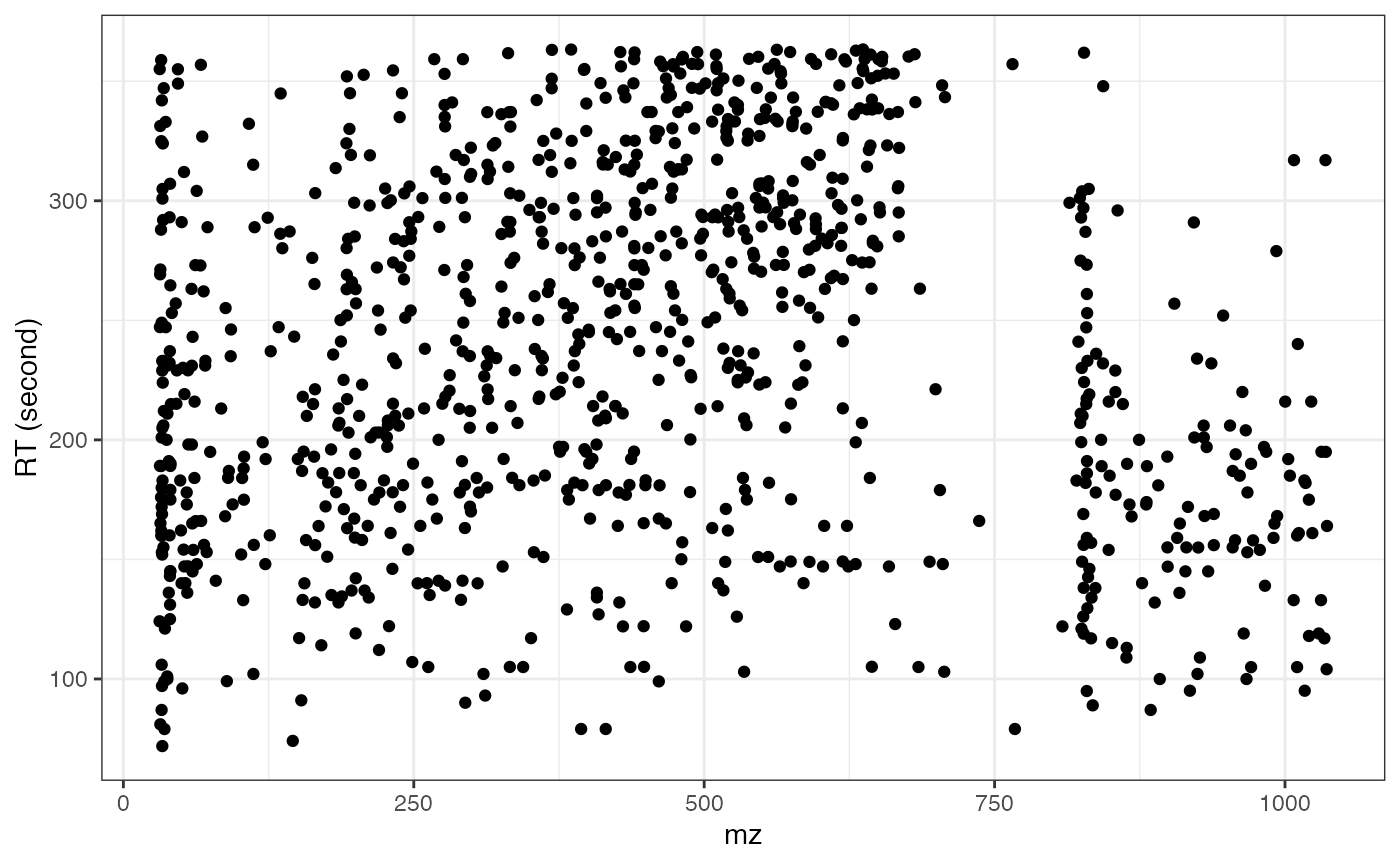

{r,eval=TRUE,warning=FALSE, R.options="", message=FALSE, cache=FALSE, fig.alt="Scatter plot of retention time and m/z values from variable_info."} object %>% `+`(1) %>% log(10) %>% scale() %>% activate_mass_dataset(what = "variable_info") %>% ggplot(aes(rt, mz)) + geom_point() + theme_bw() + labs(x = "mz", y = "RT (second)")
