Metabolite annotation
Xiaotao Shen (https://www.shenxt.info/)
Created on 2021-12-04 and updated on 2022-03-21
metabolite_annotation.Rmd
Data preparation
We just use the dataset which are from previous step.
Add MS2 spectra data to mass_dataset
class

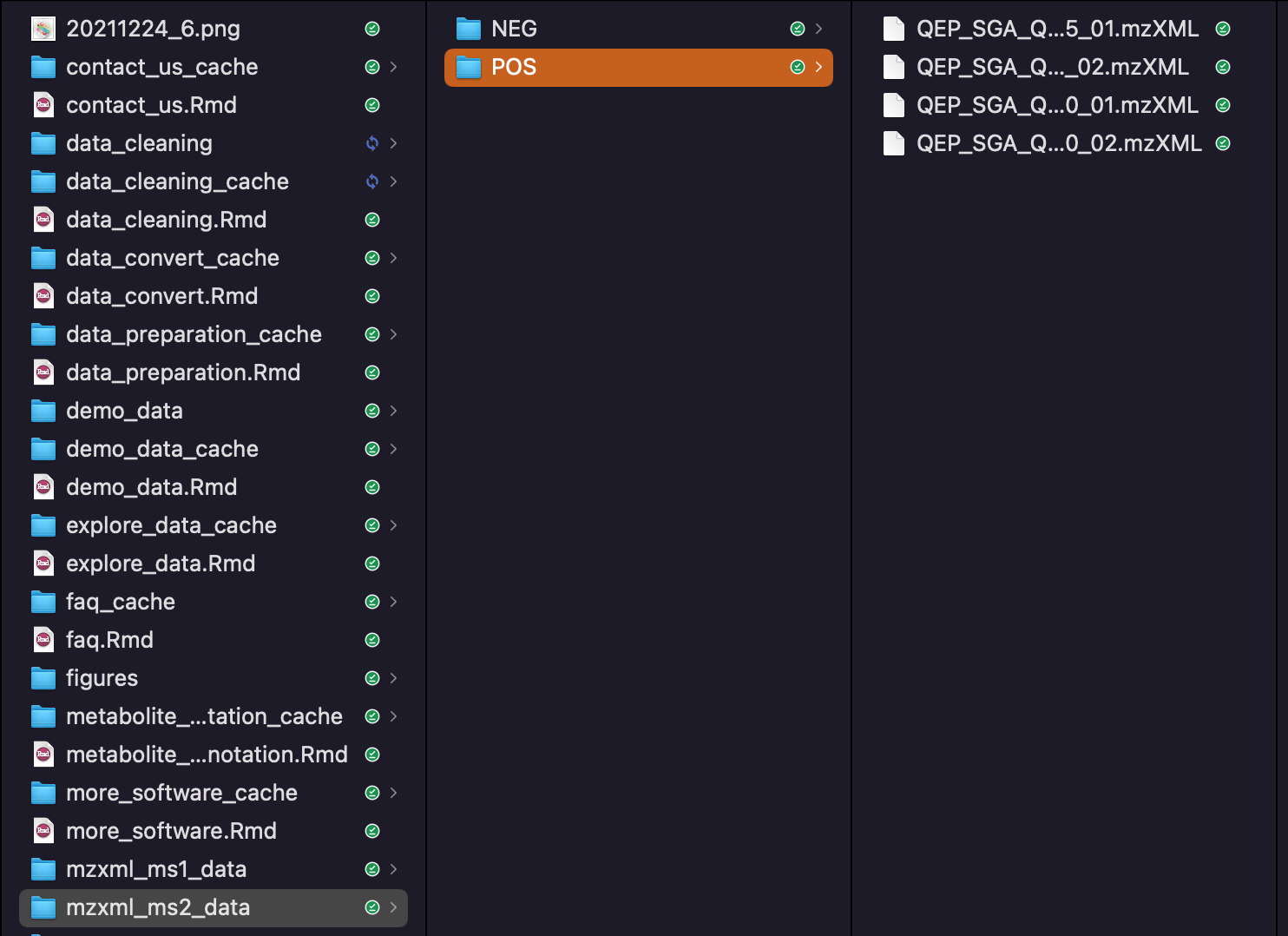

Download the MS2 data here.
Uncompress it.
Positive mode
object_pos2 <-
mutate_ms2(
object = object_pos2,
column = "rp",
polarity = "positive",
ms1.ms2.match.mz.tol = 15,
ms1.ms2.match.rt.tol = 30,
path = "mgf_ms2_data/POS"
)
#> Reading mgf data...
#>
#> Reading mgf data...
#>
#> Reading mgf data...
#>
#> Reading mgf data...
#>
#> 1042 out of 5101 variable have MS2 spectra.
#>
#> Selecting the most intense MS2 spectrum for each peak...
object_pos2
#> --------------------
#> massdataset version: 0.99.1
#> --------------------
#> 1.expression_data:[ 5101 x 259 data.frame]
#> 2.sample_info:[ 259 x 6 data.frame]
#> 3.variable_info:[ 5101 x 6 data.frame]
#> 4.sample_info_note:[ 6 x 2 data.frame]
#> 5.variable_info_note:[ 6 x 2 data.frame]
#> 6.ms2_data:[ 1042 variables x 951 MS2 spectra]
#> --------------------
#> Processing information (extract_process_info())
#> create_mass_dataset ----------
#> Package Function.used Time
#> 1 massdataset create_mass_dataset() 2022-01-16 16:19:04
#> process_data ----------
#> Package Function.used Time
#> 1 massprocesser process_data 2022-01-16 16:18:43
#> mutate ----------
#> Package Function.used Time
#> 1 massdataset mutate() 2022-01-16 23:48:08
#> mutate_variable_na_freq ----------
#> Package Function.used Time
#> 1 massdataset mutate_variable_na_freq() 2022-01-18 09:11:43
#> 2 massdataset mutate_variable_na_freq() 2022-01-18 09:11:43
#> 3 massdataset mutate_variable_na_freq() 2022-01-18 09:11:43
#> filter ----------
#> Package Function.used Time
#> 1 massdataset filter() 2022-01-18 09:11:44
#> impute_mv ----------
#> Package Function.used Time
#> 1 masscleaner impute_mv() 2022-01-18 09:38:02
#> normalize_data ----------
#> Package Function.used Time
#> 1 masscleaner normalize_data() 2022-01-18 09:38:07
#> integrate_data ----------
#> Package Function.used Time
#> 1 masscleaner integrate_data() 2022-01-18 09:38:08
#> update_mass_dataset ----------
#> Package Function.used Time
#> 1 massdataset update_mass_dataset() 2022-01-19 21:53:01
#> mutate_ms2 ----------
#> Package Function.used Time
#> 1 massdataset mutate_ms2() 2022-01-19 21:53:36
extract_ms2_data(object_pos2)
#> $`QEP_SGA_QC_posi_ms2_ce25_01.mgf;QEP_SGA_QC_posi_ms2_ce25_02.mgf;QEP_SGA_QC_posi_ms2_ce50_01.mgf;QEP_SGA_QC_posi_ms2_ce50_02.mgf`
#> --------------------
#> column: rp
#> polarity: positive
#> mz_tol: 15
#> rt_tol (second): 30
#> --------------------
#> 1042 variables:
#> M71T775_POS M72T53_POS M83T50_POS M84T57_POS M85T54_POS...
#> 951 MS2 spectra.
#> mz70.981170654297rt775.4286 mz72.081642150879rt53.6528862 mz82.945625305176rt49.238013 mz84.045127868652rt59.6895132 mz85.029016959043rt53.0835648...
#>
Negative mode
object_neg2 <-
mutate_ms2(
object = object_neg2,
column = "rp",
polarity = "negative",
ms1.ms2.match.mz.tol = 15,
ms1.ms2.match.rt.tol = 30,
path = "mgf_ms2_data/NEG"
)
#> Reading mgf data...
#>
#> Reading mgf data...
#>
#> Reading mgf data...
#>
#> Reading mgf data...
#>
#> 1092 out of 4104 variable have MS2 spectra.
#>
#> Selecting the most intense MS2 spectrum for each peak...
object_neg2
#> --------------------
#> massdataset version: 0.99.1
#> --------------------
#> 1.expression_data:[ 4104 x 259 data.frame]
#> 2.sample_info:[ 259 x 6 data.frame]
#> 3.variable_info:[ 4104 x 6 data.frame]
#> 4.sample_info_note:[ 6 x 2 data.frame]
#> 5.variable_info_note:[ 6 x 2 data.frame]
#> 6.ms2_data:[ 1092 variables x 988 MS2 spectra]
#> --------------------
#> Processing information (extract_process_info())
#> create_mass_dataset ----------
#> Package Function.used Time
#> 1 massdataset create_mass_dataset() 2022-01-16 16:20:02
#> process_data ----------
#> Package Function.used Time
#> 1 massprocesser process_data 2022-01-16 16:19:48
#> mutate ----------
#> Package Function.used Time
#> 1 massdataset mutate() 2022-01-16 23:48:08
#> mutate_variable_na_freq ----------
#> Package Function.used Time
#> 1 massdataset mutate_variable_na_freq() 2022-01-18 09:11:47
#> 2 massdataset mutate_variable_na_freq() 2022-01-18 09:11:47
#> 3 massdataset mutate_variable_na_freq() 2022-01-18 09:11:47
#> filter ----------
#> Package Function.used Time
#> 1 massdataset filter() 2022-01-18 09:11:47
#> impute_mv ----------
#> Package Function.used Time
#> 1 masscleaner impute_mv() 2022-01-18 09:38:06
#> normalize_data ----------
#> Package Function.used Time
#> 1 masscleaner normalize_data() 2022-01-18 09:50:47
#> integrate_data ----------
#> Package Function.used Time
#> 1 masscleaner integrate_data() 2022-01-18 09:50:47
#> update_mass_dataset ----------
#> Package Function.used Time
#> 1 massdataset update_mass_dataset() 2022-01-19 21:53:37
#> mutate_ms2 ----------
#> Package Function.used Time
#> 1 massdataset mutate_ms2() 2022-01-19 21:54:06
extract_ms2_data(object_neg2)
#> $`QEP_SGA_QC_neg_ms2_ce25_01.mgf;QEP_SGA_QC_neg_ms2_ce25_02.mgf;QEP_SGA_QC_neg_ms2_ce50_01.mgf;QEP_SGA_QC_neg_ms2_ce50_02.mgf`
#> --------------------
#> column: rp
#> polarity: negative
#> mz_tol: 15
#> rt_tol (second): 30
#> --------------------
#> 1092 variables:
#> M71T51_NEG M73T74_NEG M75T52_NEG M80T299_NEG M80T232_NEG...
#> 988 MS2 spectra.
#> mz71.012359619141rt52.3270968 mz73.02799987793rt74.779476 mz75.007308959961rt24.1557228 mz79.955728954783rt301.268466 mz79.955834350356rt235.127328...
#>
Metabolite annotation
Metabolite annotation is based on the metid
package.
Download database

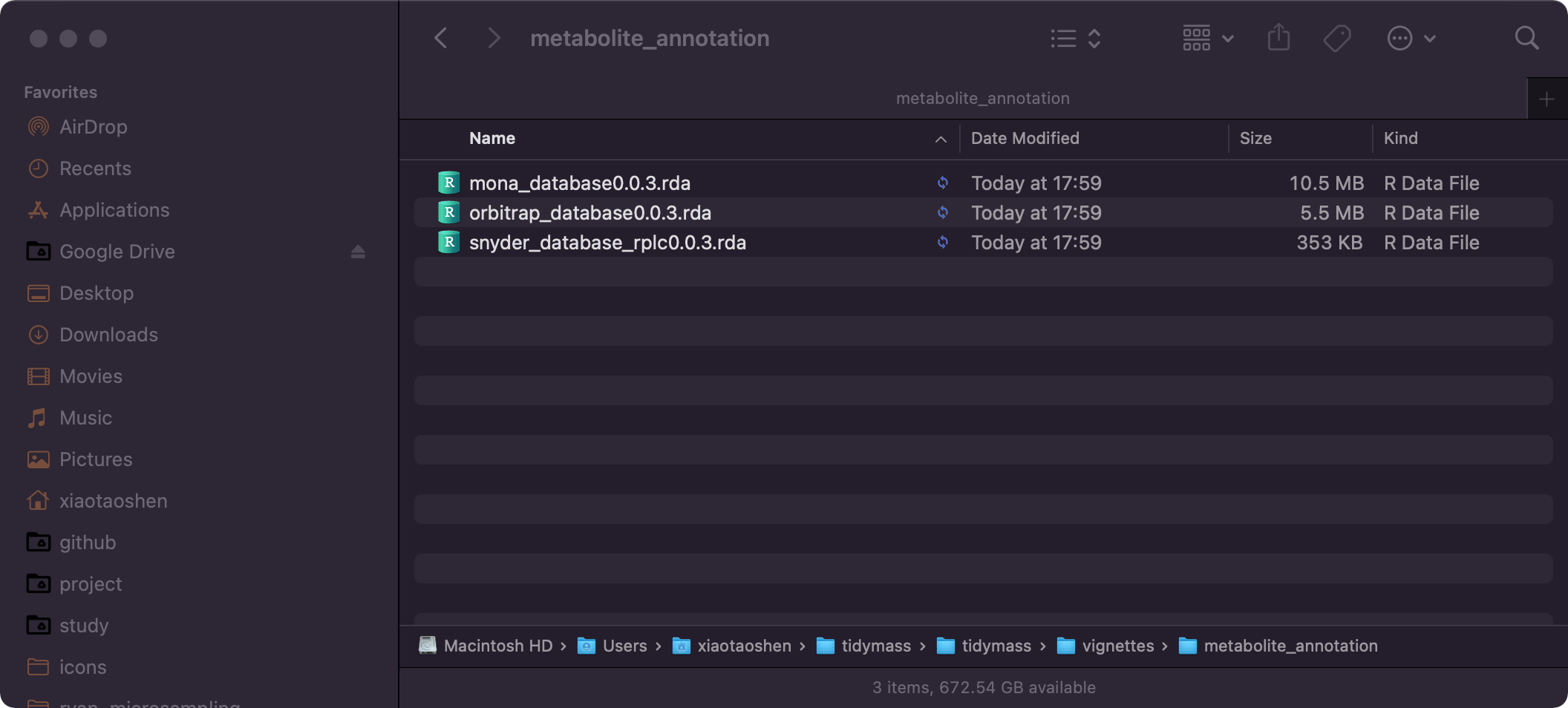

We need to download MS2 database from metid
website.
Here we download the Michael Snyder RPLC databases
, Orbitrap database
and MoNA database
. And place them in a new folder named as metabolite_annotation
.
Positive mode
Annotate features using snyder_database_rplc0.0.3
.
load("metabolite_annotation/snyder_database_rplc0.0.3.rda")
snyder_database_rplc0.0.3
#> -----------Base information------------
#> Version: 0.0.2
#> Source: MS
#> Link: http://snyderlab.stanford.edu/
#> Creater: Xiaotao Shen ( shenxt1990@163.com )
#> With RT information
#> -----------Spectral information------------
#> There are 14 items of metabolites in database:
#> Lab.ID; Compound.name; mz; RT; CAS.ID; HMDB.ID; KEGG.ID; Formula; mz.pos; mz.neg; Submitter; Family; Sub.pathway; Note
#> There are 833 metabolites in total
#> There are 356 metabolites in positive mode with MS2 spectra.
#> There are 534 metabolites in negative mode with MS2 spectra.
#> Collision energy in positive mode (number:):
#> Total number: 2
#> NCE25; NCE50
#> Collision energy in negative mode:
#> Total number: 2
#> NCE25; NCE50
#>
object_pos2 <-
annotate_metabolites_mass_dataset(object = object_pos2,
ms1.match.ppm = 15,
rt.match.tol = 30,
polarity = "positive",
database = snyder_database_rplc0.0.3)
Annotate features using orbitrap_database0.0.3
.
load("metabolite_annotation/orbitrap_database0.0.3.rda")
orbitrap_database0.0.3
#> -----------Base information------------
#> Version: 0.0.1
#> Source: NIST
#> Link: https://www.nist.gov/
#> Creater: Xiaotao Shen ( shenxt1990@163.com )
#> Without RT informtaion
#> -----------Spectral information------------
#> There are 8 items of metabolites in database:
#> Lab.ID; Compound.name; mz; RT; CAS.ID; HMDB.ID; KEGG.ID; Formula
#> There are 8360 metabolites in total
#> There are 7103 metabolites in positive mode with MS2 spectra.
#> There are 3311 metabolites in negative mode with MS2 spectra.
#> Collision energy in positive mode (number:):
#> Total number: 12
#> 10; 15; 45; 55; 5; 20; 30; 35; 40; 25
#> Collision energy in negative mode:
#> Total number: 12
#> 10; 25; 5; 15; 20; 30; 50; 35; 40; 45
#>
object_pos2 <-
annotate_metabolites_mass_dataset(object = object_pos2,
ms1.match.ppm = 15,
polarity = "positive",
database = orbitrap_database0.0.3)
Annotate features using mona_database0.0.3
.
load("metabolite_annotation/mona_database0.0.3.rda")
orbitrap_database0.0.3
#> -----------Base information------------
#> Version: 0.0.1
#> Source: NIST
#> Link: https://www.nist.gov/
#> Creater: Xiaotao Shen ( shenxt1990@163.com )
#> Without RT informtaion
#> -----------Spectral information------------
#> There are 8 items of metabolites in database:
#> Lab.ID; Compound.name; mz; RT; CAS.ID; HMDB.ID; KEGG.ID; Formula
#> There are 8360 metabolites in total
#> There are 7103 metabolites in positive mode with MS2 spectra.
#> There are 3311 metabolites in negative mode with MS2 spectra.
#> Collision energy in positive mode (number:):
#> Total number: 12
#> 10; 15; 45; 55; 5; 20; 30; 35; 40; 25
#> Collision energy in negative mode:
#> Total number: 12
#> 10; 25; 5; 15; 20; 30; 50; 35; 40; 45
#>
object_pos2 <-
annotate_metabolites_mass_dataset(object = object_pos2,
ms1.match.ppm = 15,
polarity = "positive",
database = mona_database0.0.3)
Negative mode
Annotate features using snyder_database_rplc0.0.3
.
object_neg2 <-
annotate_metabolites_mass_dataset(object = object_neg2,
ms1.match.ppm = 15,
rt.match.tol = 30,
polarity = "negative",
database = snyder_database_rplc0.0.3)

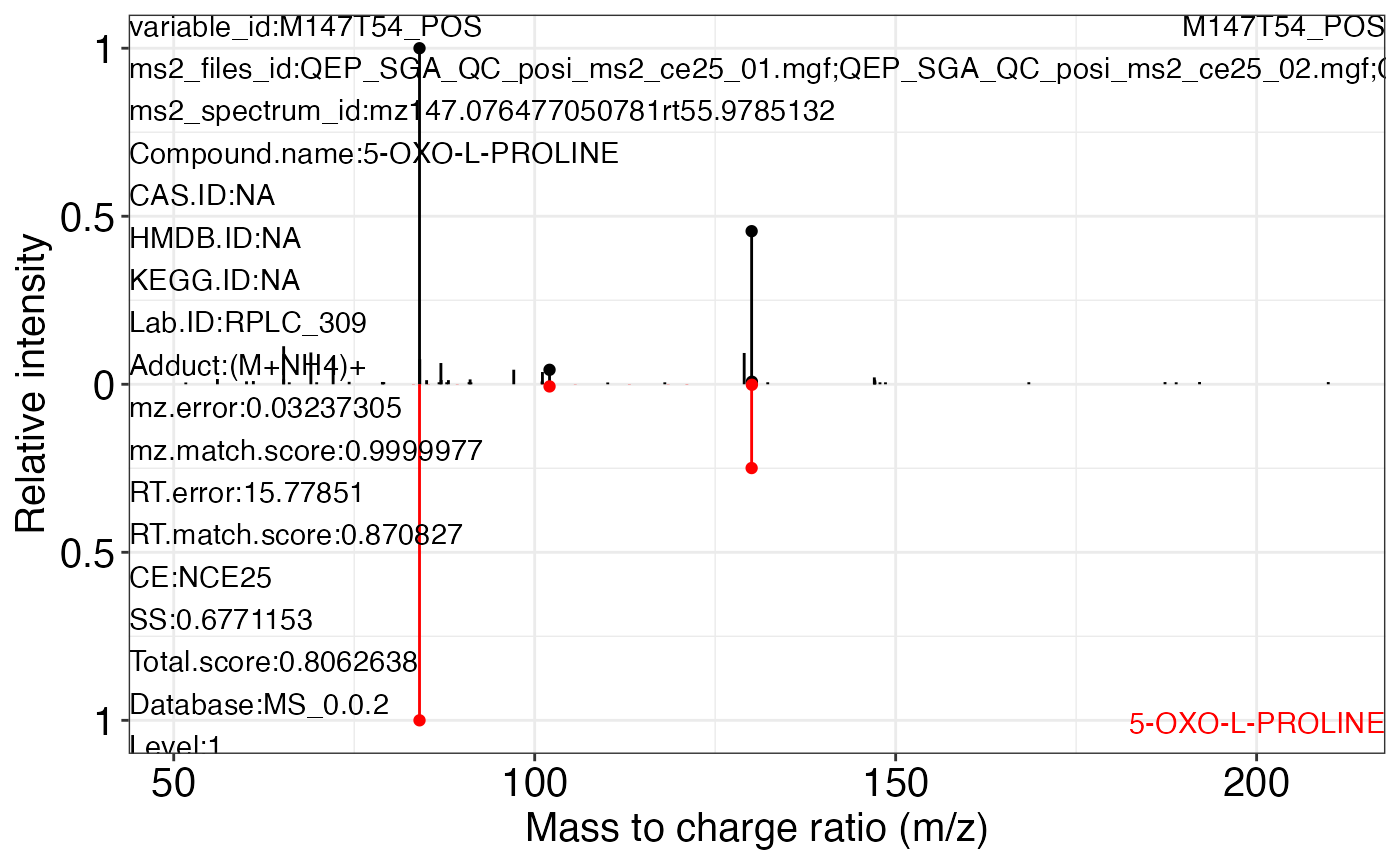

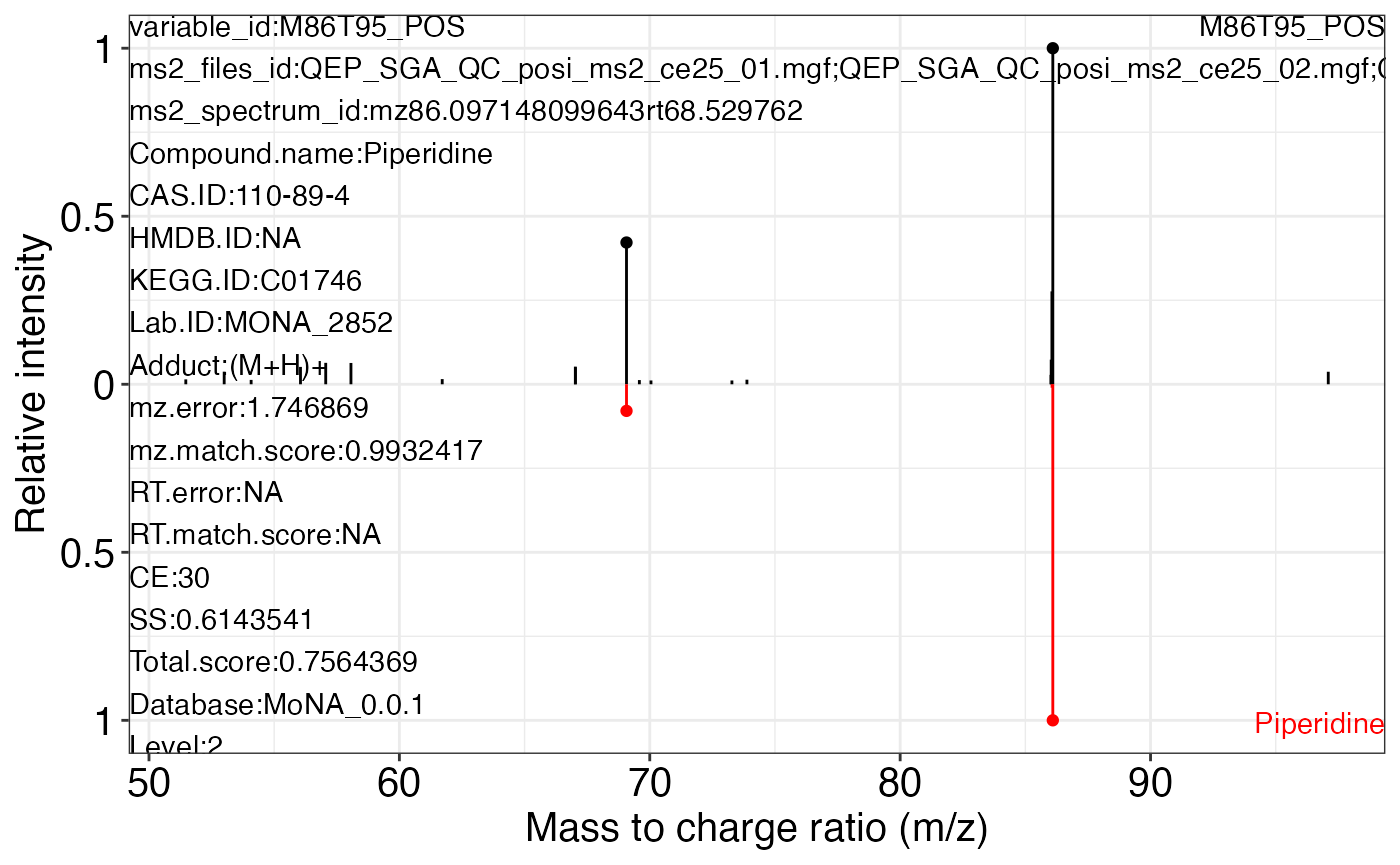

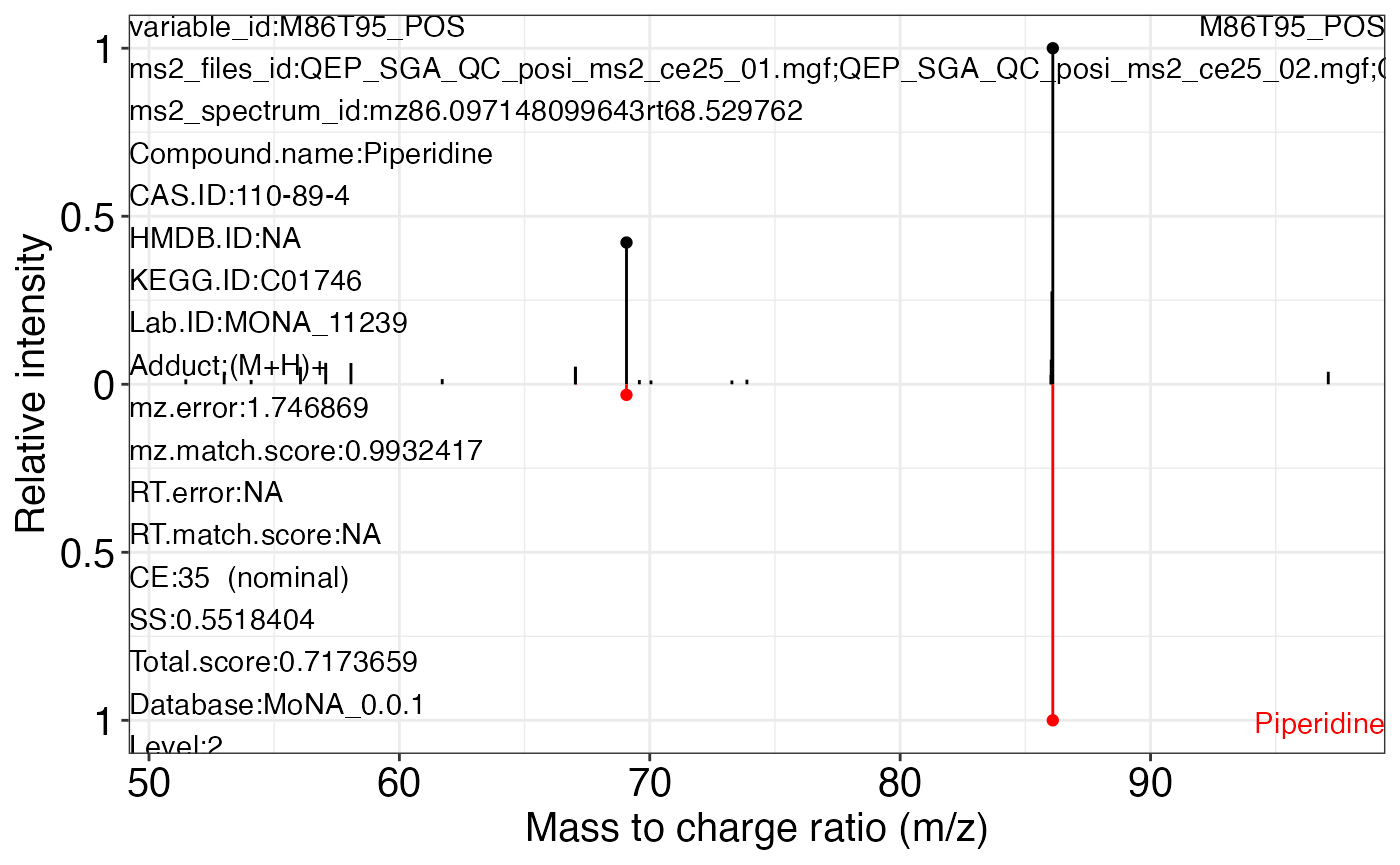

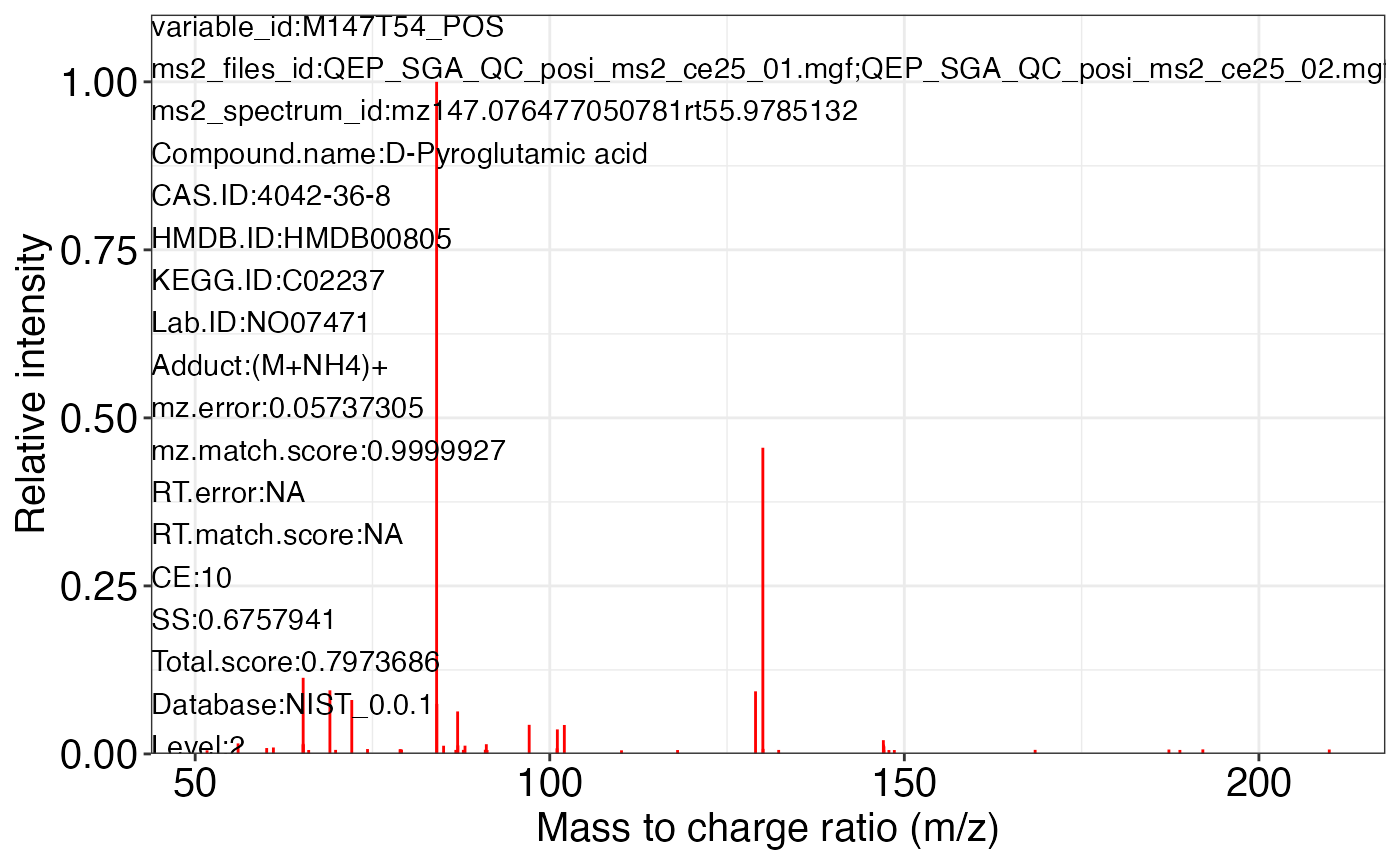

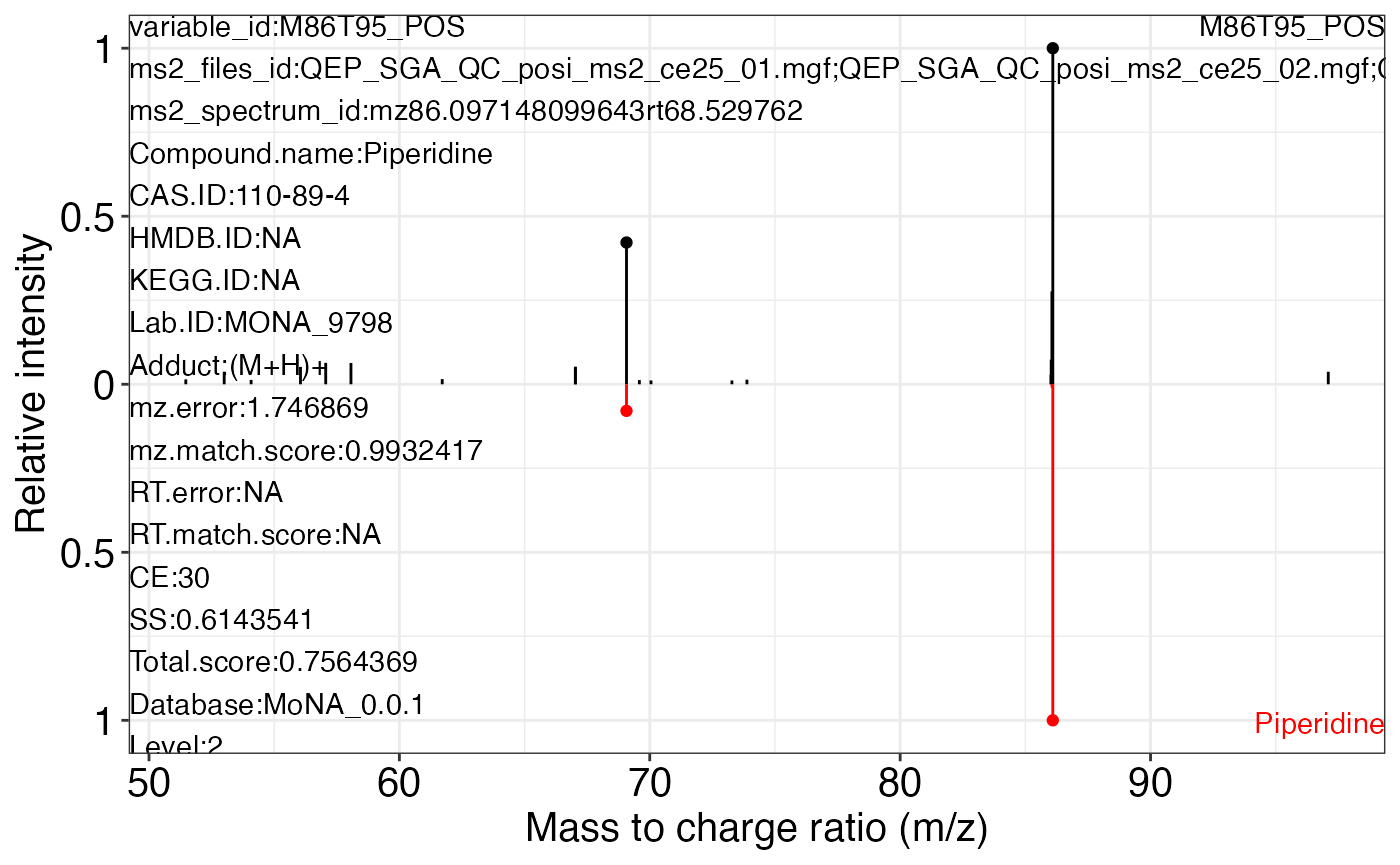

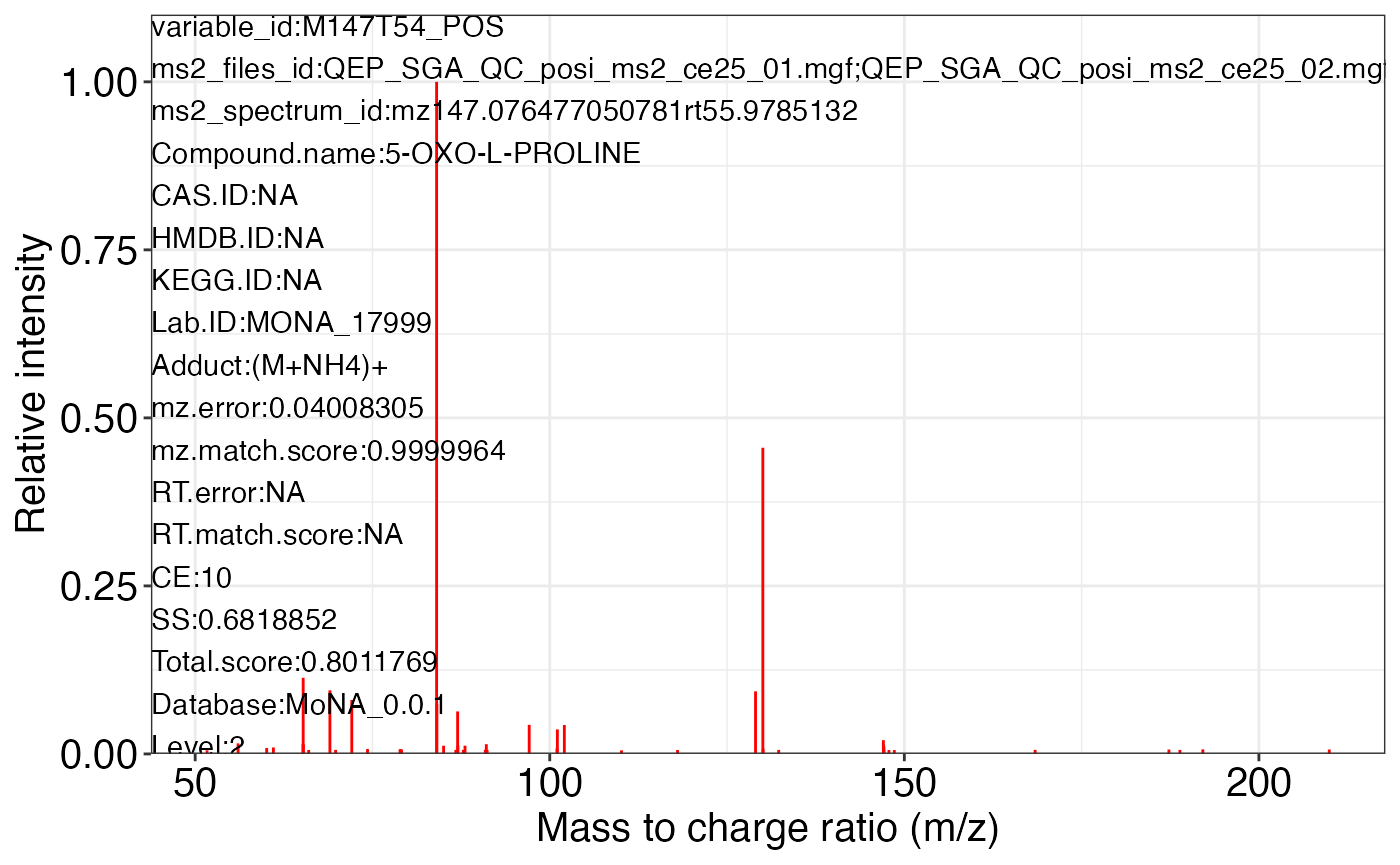

Annotation result
The annotation result will assign into mass_dataset
class as the annotation_table
slot.
head(extract_annotation_table(object = object_pos2))
#> variable_id
#> 1 M100T160_POS
#> 2 M103T100_POS
#> 3 M103T100_POS
#> 4 M104T51_POS
#> 5 M113T187_POS
#> 6 M113T81_POS
#> ms2_files_id
#> 1 QEP_SGA_QC_posi_ms2_ce25_01.mgf;QEP_SGA_QC_posi_ms2_ce25_02.mgf;QEP_SGA_QC_posi_ms2_ce50_01.mgf;QEP_SGA_QC_posi_ms2_ce50_02.mgf
#> 2 QEP_SGA_QC_posi_ms2_ce25_01.mgf;QEP_SGA_QC_posi_ms2_ce25_02.mgf;QEP_SGA_QC_posi_ms2_ce50_01.mgf;QEP_SGA_QC_posi_ms2_ce50_02.mgf
#> 3 QEP_SGA_QC_posi_ms2_ce25_01.mgf;QEP_SGA_QC_posi_ms2_ce25_02.mgf;QEP_SGA_QC_posi_ms2_ce50_01.mgf;QEP_SGA_QC_posi_ms2_ce50_02.mgf
#> 4 QEP_SGA_QC_posi_ms2_ce25_01.mgf;QEP_SGA_QC_posi_ms2_ce25_02.mgf;QEP_SGA_QC_posi_ms2_ce50_01.mgf;QEP_SGA_QC_posi_ms2_ce50_02.mgf
#> 5 QEP_SGA_QC_posi_ms2_ce25_01.mgf;QEP_SGA_QC_posi_ms2_ce25_02.mgf;QEP_SGA_QC_posi_ms2_ce50_01.mgf;QEP_SGA_QC_posi_ms2_ce50_02.mgf
#> 6 QEP_SGA_QC_posi_ms2_ce25_01.mgf;QEP_SGA_QC_posi_ms2_ce25_02.mgf;QEP_SGA_QC_posi_ms2_ce50_01.mgf;QEP_SGA_QC_posi_ms2_ce50_02.mgf
#> ms2_spectrum_id Compound.name CAS.ID HMDB.ID
#> 1 mz100.076248168945rt158.377638 N-Methyl-2-pyrrolidone 872-50-4 <NA>
#> 2 mz103.054814801682rt96.92601 Phenylacetaldehyde 122-78-1 HMDB06236
#> 3 mz103.054814801682rt96.92601 3-Amino-2-oxazolidinone 80-65-9 <NA>
#> 4 mz104.107467651367rt49.510314 5-Amino-1-pentanol 2508-29-4 <NA>
#> 5 mz113.060150146484rt188.406384 1,4-Cyclohexanedione <NA> <NA>
#> 6 mz113.035087585449rt77.20827 URACIL <NA> <NA>
#> KEGG.ID Lab.ID Adduct mz.error mz.match.score RT.error
#> 1 C11118 MONA_11509 (M+H)+ 1.335652 0.9960435 NA
#> 2 C00601 NO07389 (M+H-H2O)+ 1.537004 0.9947640 NA
#> 3 <NA> NO07231 (M+H)+ 11.537004 0.7439487 NA
#> 4 <NA> NO07238 (M+H)+ 1.169128 0.9969671 NA
#> 5 <NA> MONA_14519 (M+H)+ 1.051626 0.9975454 NA
#> 6 <NA> MONA_18148 (M+H)+ 1.275544 0.9963909 NA
#> RT.match.score CE SS Total.score Database Level
#> 1 NA 35 (nominal) 0.6871252 0.8029696 MoNA_0.0.1 2
#> 2 NA 10 0.5748835 0.7323387 NIST_0.0.1 2
#> 3 NA 20 0.5020256 0.5927468 NIST_0.0.1 2
#> 4 NA 5 0.5971697 0.7470937 NIST_0.0.1 2
#> 5 NA HCD (NCE 20-30-40%) 0.5401414 0.7116679 MoNA_0.0.1 2
#> 6 NA 10 0.6889885 0.8042644 MoNA_0.0.1 2
variable_info_pos <-
extract_variable_info(object = object_pos2)
head(variable_info_pos)
#> variable_id mz rt na_freq na_freq.1 na_freq.2 Compound.name
#> 1 M70T53_POS 70.06596 52.78542 0.00000000 0.14545455 0.00000000 <NA>
#> 2 M70T527_POS 70.36113 526.76657 0.02564103 0.18181818 0.30000000 <NA>
#> 3 M71T775_POS 70.98125 775.44867 0.00000000 0.00000000 0.00000000 <NA>
#> 4 M71T669_POS 70.98125 668.52844 0.00000000 0.02727273 0.01818182 <NA>
#> 5 M71T715_POS 70.98125 714.74066 0.05128205 0.12727273 0.02727273 <NA>
#> 6 M71T54_POS 71.04999 54.45641 0.15384615 0.99090909 0.05454545 <NA>
#> CAS.ID HMDB.ID KEGG.ID Lab.ID Adduct mz.error mz.match.score RT.error
#> 1 <NA> <NA> <NA> <NA> <NA> NA NA NA
#> 2 <NA> <NA> <NA> <NA> <NA> NA NA NA
#> 3 <NA> <NA> <NA> <NA> <NA> NA NA NA
#> 4 <NA> <NA> <NA> <NA> <NA> NA NA NA
#> 5 <NA> <NA> <NA> <NA> <NA> NA NA NA
#> 6 <NA> <NA> <NA> <NA> <NA> NA NA NA
#> RT.match.score CE SS Total.score Database Level
#> 1 NA <NA> NA NA <NA> NA
#> 2 NA <NA> NA NA <NA> NA
#> 3 NA <NA> NA NA <NA> NA
#> 4 NA <NA> NA NA <NA> NA
#> 5 NA <NA> NA NA <NA> NA
#> 6 NA <NA> NA NA <NA> NA
table(variable_info_pos$Level)
#>
#> 1 2
#> 23 183
table(variable_info_pos$Database)
#>
#> MoNA_0.0.1 MS_0.0.2 NIST_0.0.1
#> 78 23 105
Use the ms2_plot_mass_dataset()
function to get the MS2 matching plot.
ms2_plot_mass_dataset(object = object_pos2,
variable_id = "M86T95_POS",
database = mona_database0.0.3)
#> $M86T95_POS_1
#>
#> $M86T95_POS_2
#>
#> $M86T95_POS_3
ms2_plot_mass_dataset(object = object_pos2,
variable_id = "M86T95_POS",
database = mona_database0.0.3,
interactive_plot = TRUE)
#> $M86T95_POS_1
#>
#> $M86T95_POS_2
#>
#> $M86T95_POS_3
ms2_plot_mass_dataset(object = object_pos2,
variable_id = "M147T54_POS",
database = snyder_database_rplc0.0.3,
interactive_plot = FALSE)
#> database may be wrong.
#> database may be wrong.
#> $M147T54_POS_1
#>
#> $M147T54_POS_2
#>
#> $M147T54_POS_3
Save data for subsequent analysis.
Session information
sessionInfo()
#> R version 4.1.2 (2021-11-01)
#> Platform: x86_64-apple-darwin17.0 (64-bit)
#> Running under: macOS Big Sur 10.16
#>
#> Matrix products: default
#> BLAS: /Library/Frameworks/R.framework/Versions/4.1/Resources/lib/libRblas.0.dylib
#> LAPACK: /Library/Frameworks/R.framework/Versions/4.1/Resources/lib/libRlapack.dylib
#>
#> locale:
#> [1] en_US.UTF-8/en_US.UTF-8/en_US.UTF-8/C/en_US.UTF-8/en_US.UTF-8
#>
#> attached base packages:
#> [1] stats4 stats graphics grDevices utils datasets methods
#> [8] base
#>
#> other attached packages:
#> [1] tinytools_0.9.1 dplyr_1.0.8 metid_1.2.2
#> [4] metpath_0.99.2 massstat_0.99.6 ggfortify_0.4.14
#> [7] ggplot2_3.3.5 massqc_0.99.3 masscleaner_0.99.3
#> [10] xcms_3.16.1 MSnbase_2.20.4 ProtGenerics_1.26.0
#> [13] S4Vectors_0.32.3 mzR_2.28.0 Rcpp_1.0.8
#> [16] Biobase_2.54.0 BiocGenerics_0.40.0 BiocParallel_1.28.3
#> [19] massprocesser_0.99.3 magrittr_2.0.2 masstools_0.99.3
#> [22] massdataset_0.99.8 tidymass_0.99.4
#>
#> loaded via a namespace (and not attached):
#> [1] ragg_1.2.1 tidyr_1.2.0
#> [3] missForest_1.4 knitr_1.37
#> [5] DelayedArray_0.20.0 data.table_1.14.2
#> [7] rpart_4.1.16 KEGGREST_1.34.0
#> [9] RCurl_1.98-1.5 doParallel_1.0.17
#> [11] generics_0.1.2 snow_0.4-4
#> [13] leaflet_2.1.0 preprocessCore_1.56.0
#> [15] mixOmics_6.18.1 RANN_2.6.1
#> [17] proxy_0.4-26 future_1.23.0
#> [19] tzdb_0.2.0 xml2_1.3.3
#> [21] lubridate_1.8.0 ggsci_2.9
#> [23] SummarizedExperiment_1.24.0 assertthat_0.2.1
#> [25] tidyverse_1.3.1 viridis_0.6.2
#> [27] xfun_0.29 hms_1.1.1
#> [29] jquerylib_0.1.4 evaluate_0.15
#> [31] DEoptimR_1.0-10 fansi_1.0.2
#> [33] dbplyr_2.1.1 readxl_1.3.1
#> [35] igraph_1.2.11 DBI_1.1.2
#> [37] htmlwidgets_1.5.4 MsFeatures_1.3.0
#> [39] rARPACK_0.11-0 purrr_0.3.4
#> [41] ellipsis_0.3.2 RSpectra_0.16-0
#> [43] crosstalk_1.2.0 backports_1.4.1
#> [45] ggcorrplot_0.1.3 MatrixGenerics_1.6.0
#> [47] vctrs_0.3.8 remotes_2.4.2
#> [49] cachem_1.0.6 withr_2.4.3
#> [51] ggforce_0.3.3 itertools_0.1-3
#> [53] robustbase_0.93-9 checkmate_2.0.0
#> [55] cluster_2.1.2 lazyeval_0.2.2
#> [57] crayon_1.5.0 ellipse_0.4.2
#> [59] labeling_0.4.2 pkgconfig_2.0.3
#> [61] tweenr_1.0.2 GenomeInfoDb_1.30.0
#> [63] nnet_7.3-17 rlang_1.0.1
#> [65] globals_0.14.0 lifecycle_1.0.1
#> [67] affyio_1.64.0 extrafontdb_1.0
#> [69] fastDummies_1.6.3 MassSpecWavelet_1.60.0
#> [71] modelr_0.1.8 cellranger_1.1.0
#> [73] randomForest_4.7-1 rprojroot_2.0.2
#> [75] polyclip_1.10-0 matrixStats_0.61.0
#> [77] Matrix_1.4-0 reprex_2.0.1
#> [79] base64enc_0.1-3 GlobalOptions_0.1.2
#> [81] png_0.1-7 viridisLite_0.4.0
#> [83] rjson_0.2.21 clisymbols_1.2.0
#> [85] bitops_1.0-7 pander_0.6.4
#> [87] Biostrings_2.62.0 shape_1.4.6
#> [89] stringr_1.4.0 parallelly_1.30.0
#> [91] robust_0.7-0 readr_2.1.2
#> [93] jpeg_0.1-9 gridGraphics_0.5-1
#> [95] scales_1.1.1 memoise_2.0.1
#> [97] plyr_1.8.6 zlibbioc_1.40.0
#> [99] compiler_4.1.2 RColorBrewer_1.1-2
#> [101] pcaMethods_1.86.0 clue_0.3-60
#> [103] rrcov_1.6-2 cli_3.2.0
#> [105] affy_1.72.0 XVector_0.34.0
#> [107] listenv_0.8.0 patchwork_1.1.1
#> [109] pbapply_1.5-0 htmlTable_2.4.0
#> [111] Formula_1.2-4 MASS_7.3-55
#> [113] tidyselect_1.1.1 vsn_3.62.0
#> [115] stringi_1.7.6 forcats_0.5.1
#> [117] textshaping_0.3.6 highr_0.9
#> [119] yaml_2.3.4 latticeExtra_0.6-29
#> [121] MALDIquant_1.21 ggrepel_0.9.1
#> [123] grid_4.1.2 sass_0.4.0
#> [125] tools_4.1.2 parallel_4.1.2
#> [127] circlize_0.4.14 rstudioapi_0.13
#> [129] MsCoreUtils_1.6.0 foreach_1.5.2
#> [131] foreign_0.8-82 gridExtra_2.3
#> [133] farver_2.1.0 mzID_1.32.0
#> [135] ggraph_2.0.5 rvcheck_0.2.1
#> [137] digest_0.6.29 BiocManager_1.30.16
#> [139] GenomicRanges_1.46.1 broom_0.7.12
#> [141] ncdf4_1.19 httr_1.4.2
#> [143] ComplexHeatmap_2.10.0 colorspace_2.0-2
#> [145] rvest_1.0.2 XML_3.99-0.8
#> [147] fs_1.5.2 IRanges_2.28.0
#> [149] splines_4.1.2 yulab.utils_0.0.4
#> [151] graphlayouts_0.8.0 pkgdown_2.0.2
#> [153] ggplotify_0.1.0 plotly_4.10.0
#> [155] systemfonts_1.0.3 fit.models_0.64
#> [157] jsonlite_1.7.3 tidygraph_1.2.0
#> [159] corpcor_1.6.10 R6_2.5.1
#> [161] Hmisc_4.6-0 pillar_1.7.0
#> [163] htmltools_0.5.2 glue_1.6.1
#> [165] fastmap_1.1.0 class_7.3-20
#> [167] codetools_0.2-18 pcaPP_1.9-74
#> [169] mvtnorm_1.1-3 furrr_0.2.3
#> [171] utf8_1.2.2 lattice_0.20-45
#> [173] bslib_0.3.1 tibble_3.1.6
#> [175] zip_2.2.0 openxlsx_4.2.5
#> [177] Rttf2pt1_1.3.9 survival_3.2-13
#> [179] limma_3.50.0 rmarkdown_2.11
#> [181] desc_1.4.0 munsell_0.5.0
#> [183] e1071_1.7-9 GetoptLong_1.0.5
#> [185] GenomeInfoDbData_1.2.7 iterators_1.0.14
#> [187] impute_1.68.0 haven_2.4.3
#> [189] reshape2_1.4.4 gtable_0.3.0
#> [191] extrafont_0.17
